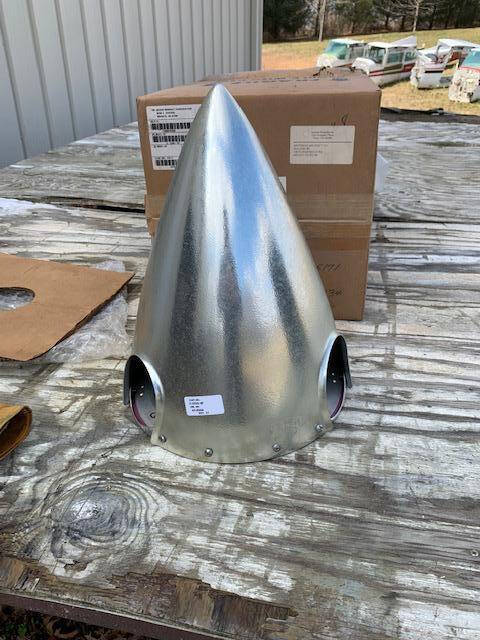

NEW Beechcraft & Cessna & Mooney Hartzell A-2295-2P 3-Blade Propeller Spinner with front and back plates

Name: NEW Beechcraft & Cessna & Mooney Hartzell A-2295-2P 3-Blade Propeller Spinner with front and back plates
Brand: Beechcraft
SKU: 1016

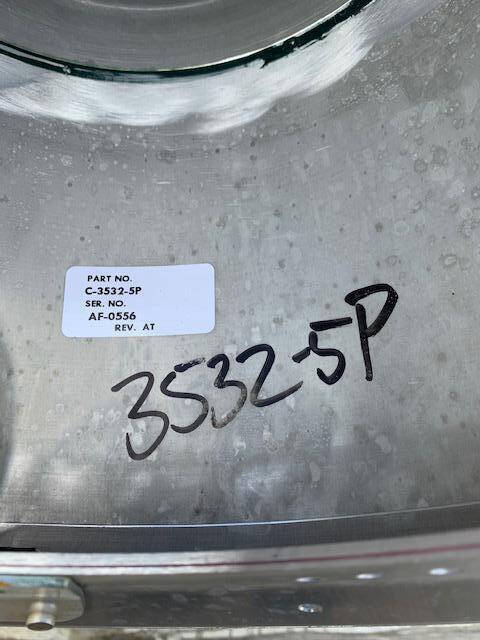

PN: A-2295-2P (assembly. NOTE: The following are all alternate part numbers:), 3532-5P (spinner only), C-2294-1 (aft bulkhead)

SKU: 1016

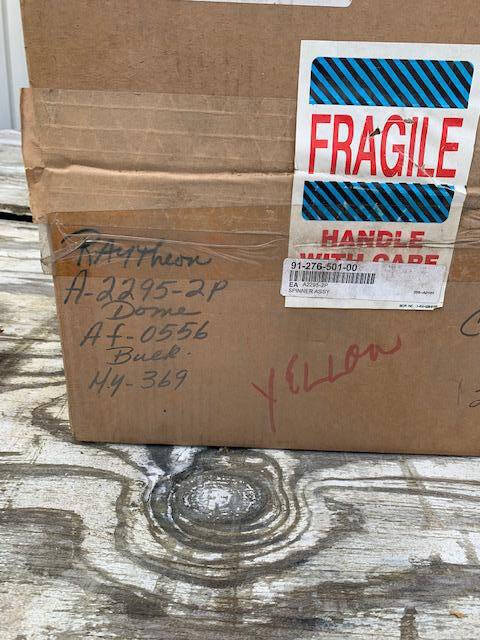

Brand NEW in the original box Beechcraft, Cessna and Mooney 3-blade propeller spinners with bulkheads. Can be used with 28 volt, electric DE-Ice system on certain models. Fits:

Beechcraft Bonanza 33, 35, 36 with IO-520B, -BA and IO-550-B engine. Also fits B36TC with TSIO-520-UB engine. The propeller is: PHC-C3YF-1RF

A36 and G36 Bonanzas with IO-550-B engine. The propeller for these applications is PHC-C3YR-1RF

Fits: Cessna 185, 206 and 207 with IO-520 engines

FOR ALL CESSNA the propeller is: HC-C3YF-1RF

Fits: Mooney MK20 with TSIO 360 engine; PHC-J3YF-1RF

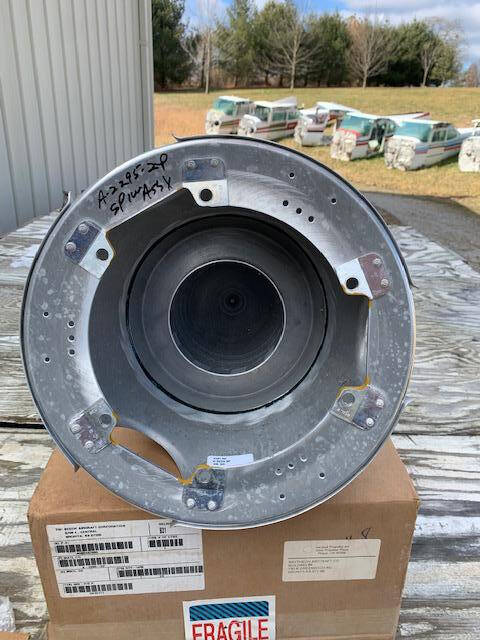

These are COMPLETE assemblies with Front and Aft bulkheads.

According to Harzell these are CNC machined assemblies meaning the aft bulkhead is fitted to a particular spinner. I have had some clients have luck with their older aft bulkheads fitting the new spinner…

Call for pricing!

SKU: 1016

Category: Airframe Parts
